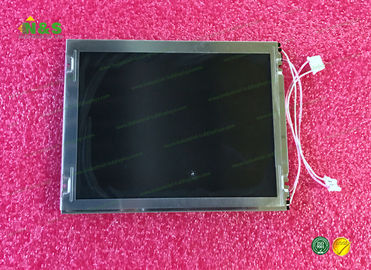

Normally White AA065VB07 6.5 inch 640×480 tft lcd module Surface Antiglare, Hard coating (3H) Frequency 60Hz

Normally White AA065VB07 6.5 inch 640×480 tft lcd module Surface Antiglare, Hard coating (3H) Frequency 60Hz
Normally White AA065VB07 6.5 inch 640×480 tft lcd module Surface Antiglare, Hard coating (3H) Frequency 60Hz

Μεγάλες Εικόνας :  Normally White AA065VB07 6.5 inch 640×480 tft lcd module Surface Antiglare, Hard coating (3H) Frequency 60Hz

Λεπτομέρειες:
Τόπος καταγωγής: Ιαπωνία
Μάρκα: Mitsubishi
Πιστοποίηση: ISO9001
Αριθμό μοντέλου: AA065VB07
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1
Συσκευασία λεπτομέρειες: Αντιστατική τσάντα, τσάντα φυσαλίδων, κιβώτιο αφρού και κιβώτιο χαρτοκιβωτίων.
Χρόνος παράδοσης: 2-3 εργάσιμες ημέρες μετά από την επιβεβαίωση πληρωμής
Όροι πληρωμής: T/T, Western Union, Paypal
Δυνατότητα προσφοράς: 100 PC/ΗΜΈΡΑ

Normally White AA065VB07 6.5 inch 640×480 tft lcd module Surface Antiglare, Hard coating (3H) Frequency 60Hz

περιγραφή
Πάνελ τύπου: α-Si tft-LCD Μέγεθος πίνακα: 6.5 ίντσα
Ψήφισμα: 640×480 περίληψη: 154×121 χιλ.
Χρώματα επίδειξης: 262K (6-κομμάτι) συχνότητας: 60 hz
Υψηλό φως:

industrial lcd screen

,

industrial lcd panel

Normally White AA065VB07 6.5 inch 640×480 tft lcd module Surface Antiglare, Hard coating (3H) Frequency 60Hz



AA065VB07 Basic Information

Panel Model AA065VB07
Panel Brand Mitsubishi
Descrition a-Si TFT-LCD ,6.5 inch, 640×480
Panel Type a-Si TFT-LCD
Model Alias T-51952D065J-FW-A-ADN
Operating Temperature -20 ~ 70 °C
Storage Temperature -20 ~ 80 °C
Remarks Mechanically Symmetric Design



AA065VB07 Mechanical Features

Dot Resolution 640(RGB)×480 (VGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 122 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.069×0.207 mm (H×V)
Pixel Pitch 0.207×0.207 mm (H×V)
Weight 205g (Typ.)
Surface Antiglare, Hard coating (3H)
Active Area 132.48×99.36 mm (H×V)
Bezel Area 135.5×102.4 mm (H×V)
Outline Dimension 154×121 mm (H×V)
Outline Depth 11.0 (Typ.) mm
Holes & Brackets Face mounting holes (4-R1.25); Side mounting holes (4-M2)
Landscape or Portrait Landscape type
Touch Panel Without



AA065VB07 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 600 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 6/19 (Typ.)(Tr/Td)
Viewing Angle 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.30 (Max.)(5 points)
Sunlight Readable N



Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!



The reasons you choose us

1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.



Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LH500WX9-SH01 LG Display 5.0" 720×1280
P089DCZ-3A1 Innolux 8.9" 800×1280
BS050HDE-N41-6Q00 BOE 5.0" 720×1280
BV050HDE-N44 BOE 5.0" 720×1280
A101STN01.2 AUO 10.1" 1024×600
LH550WX1-SH03 LG Display 5.5" 720×1280
HSD055FHW2-D00 HannStar 5.5" 720×1280
HSD055BHW3-D00 HannStar 5.5" 720×1280
H546TAN01.4 AUO 5.5" 720×1280
LSC480AN02 Samsung 48" 1366×768
