Normally Black HV150UX1-100 15.0 inch 1600×1200 Contrast Ratio 500:1 (Typ.) Display Colors 262K (6-bit)

Normally Black HV150UX1-100 15.0 inch 1600×1200 Contrast Ratio 500:1 (Typ.) Display Colors 262K (6-bit)
Normally Black HV150UX1-100 15.0 inch 1600×1200 Contrast Ratio 500:1 (Typ.) Display Colors 262K (6-bit) Normally Black HV150UX1-100 15.0 inch 1600×1200 Contrast Ratio 500:1 (Typ.) Display Colors 262K (6-bit)

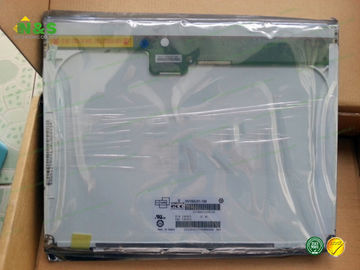

Μεγάλες Εικόνας :  Normally Black HV150UX1-100 15.0 inch 1600×1200 Contrast Ratio 500:1 (Typ.) Display Colors 262K (6-bit)

Λεπτομέρειες:
Τόπος καταγωγής: Κορέα
Μάρκα: BOE
Πιστοποίηση: ISO9001
Αριθμό μοντέλου: HV150UX1-100
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1
Συσκευασία λεπτομέρειες: Αντιστατική τσάντα, τσάντα φυσαλίδων, κιβώτιο αφρού και κιβώτιο χαρτοκιβωτίων.
Χρόνος παράδοσης: 1-3 εργάσιμες ημέρες
Όροι πληρωμής: Μ / Τ, Western Union, MoneyGram
Δυνατότητα προσφοράς: 500pcs/day

Normally Black HV150UX1-100 15.0 inch 1600×1200 Contrast Ratio 500:1 (Typ.) Display Colors 262K (6-bit)

περιγραφή
Πάνελ τύπου: α-Si tft-LCD Ψήφισμα: 1600×1200
Μέγεθος πίνακα: 15.0 ίντσα Λόγος αντίθεσης: 500:1 (τύπος.)
Χρώματα επίδειξης: 262K (6-κομμάτι)
Υψηλό φως:

industrial touch screen display

,

industrial lcd panel

Normally Black HV150UX1-100 15.0 inch 1600×1200 Contrast Ratio 500:1 (Typ.) Display Colors 262K (6-bit)

HV150UX1-100 Basic Information

Panel Model HV150UX1-100
Panel Brand BOE HYDIS
Descrition a-Si TFT-LCD ,15.0 inch, 1600×1200
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 70 °C



HV150UX1-100 Mechanical Features

Dot Resolution 1600(RGB)×1200 (UXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 133 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0635×0.1905 mm (H×V)
Pixel Pitch 0.1905×0.1905 mm (H×V)
Weight 540g (Typ.)
Surface Antiglare (Haze 45%), Hard coating (2H), Antireflection
Active Area 304.8×228.6 mm (H×V)
Bezel Area 308.2×232.0 mm (H×V)
Outline Dimension 317.3×242 mm (H×V)
Outline Depth 6.5 (Max.) mm
Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets Side mounting holes (8-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without



HV150UX1-100 Optical Features

Display Mode FFS, Normally Black, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 30/30 (Typ.)(Tr/Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥20) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.303; Wy:0.329
White Variation 1.18/1.25 (Typ./Max.)(5 points)
Sunlight Readable N


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
BF040WVMG003 BOE 4.0" 480×800
BD039WVL-100 BOE 4.0" 480×800
BF050WVQ-100 BOE 5.0" 480×854
BP080WX7-100 BOE 8.0" 1280×800
BF050FWME501 BOE 5.0" 480×854
HN133WU3-100 BOE 13.3" 1920×1080
BA060WV2-100 BOE 6.0" 480×854
BA060WV3-100 BOE 6.0" 480×854
BA050WV4-601 BOE 5.0" 480×800
HV460WU2-600 BOE 46" 1920×1080
BF050WXQ-100 BOE 5.0" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
