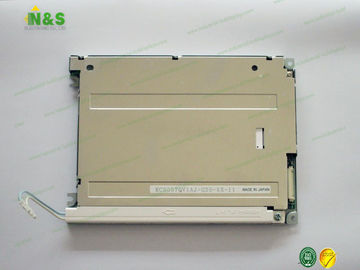

5.7 inch KCS057QV1AJ-G20 TFT LCD Module Kyocera 320×240 resolution with 115.18×86.38 mm Active Area Normally Black
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
KCS057QV1AJ-G20 Basic Information
| Panel Model |
KCS057QV1AJ-G20 |
| Panel Brand |
Kyocera |
| Descrition |
CSTN-LCD ,5.7 inch, 320×240 |
| Panel Type |
CSTN-LCD |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 60 °C |
KCS057QV1AJ-G20 Mechanical Features
| Dot Resolution |
320(RGB)×240 (QVGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
70 PPI |
| Aspect Ratio |
4:3 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.120×0.360 mm (H×V) |
| Pixel Pitch |
0.360×0.360 mm (H×V) |
| Weight |
200g (Typ.) |
| Surface |
Glare (Haze 0%) |
| Active Area |
115.18×86.38 mm (H×V) |
| Bezel Area |
120.2×91.4 mm (H×V) |
| Outline Dimension |
154.6×114.8 mm (H×V) |
| Outline Depth |
8.5±0.5 mm |
| Holes & Brackets |
Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
KCS057QV1AJ-G20 Optical Features
| Display Mode |
STN, Normally Black, Transmissive |
| Brightness |
200 cd/m² (Typ.) |
| Contrast Ratio |
40 : 1 (Typ.) (Transmissive) |
| Display Color |
Color () |
| Response Time |
220/110 (Typ.)(Tr/Td) |
| Viewing Angle |
50/50/30/30 (Typ.)(CR≥2) (L/R/U/D) |
| Sunlight Readable |
N |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Below are our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| F-55471GNBJ-LW-ANN |
Kyocera |
5.2" |
240×64 |
| F-51553GNBJ-LW-AGN |
Kyocera |
2.8" |
128×64 |
| F-51553GNBJ-LW-AFN |
Kyocera |
2.8" |
128×64 |
| F-51553GNBJ-LW-AEN |
Kyocera |
2.8" |
128×64 |
| F-51477GNF-SLY-ALN |
Kyocera |
4.7" |
320×240 |
| F-51320GNY-LY-AFN |
Kyocera |
2.8" |
128×64 |
| F-51405GNB-LW-ANN |
Kyocera |
5.2" |
240×64 |
| F-55157GNB-LW-ARN |
Kyocera |
5.7" |
320×240 |
| F-51320GNB-LW-AEN |
Kyocera |
2.8" |
128×64 |
| DMC-20481NY-LY-BKE-BNN |
Kyocera |
|
98.5×61 |
| DMC-20481NY-LY-BJE-BMN |
Kyocera |
|
98.5×61 |
| C-51847NFQJ-LW-AAN |
Kyocera |
|
98.5×61 |
