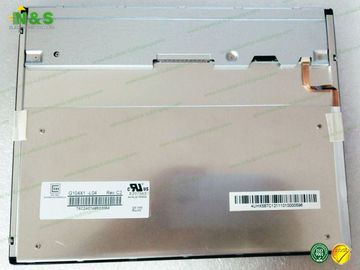

Normally Black G104X1-L04 TFT LCD Module 10.4 inch CMO Outline 225.5×176.3×9.2 mm Contrast Ratio 1000:1 (Typ.)
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
G104X1-L04 Basic Information
| Panel Model |
G104X1-L04 |
| Panel Brand |
CMO |
| Descrition |
a-Si TFT-LCD ,10.4 inch, 1024×768 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
-30 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Remarks |
Rev.C1:Haze 25%; Rev.C2:Haze 22% |
G104X1-L04 Mechanical Features
| Dot Resolution |
1024(RGB)×768 (XGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
123 PPI |
| Aspect Ratio |
4:3 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.0685×0.2055 mm (H×V) |
| Pixel Pitch |
0.2055×0.2055 mm (H×V) |
| Weight |
430±50g |
| Surface |
Antiglare |
| Active Area |
210.432×157.824 mm (H×V) |
| Bezel Area |
215.4×161.8 mm (H×V) |
| Outline Dimension |
225.5×176.3 mm (H×V) |
| Outline Depth |
7.96/9.2 (Typ./Max.) mm |
| Holes & Brackets |
Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
G104X1-L04 Optical Features
| Display Mode |
Super MVA, Normally Black, Transmissive |
| Brightness |
500 cd/m² (Typ.) |
| Contrast Ratio |
1000 : 1 (Typ.) (Transmissive) |
| Display Color |
262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut |
55% NTSC (CIE1931) |
| Response Time |
14/11 (Typ.)(Tr/Td) |
| Viewing Angle |
88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
Symmetry |
| White color Chromaticity |
Wx:0.313; Wy:0.329 |
| White Variation |
1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable |
N |
