Normally White Mitsubishi AA121SL01 Industrial LCD Displays with 246×184.5 mm Active Area Frequency 60Hz

Πιστοποίηση
Κίνα N&S ELECTRONIC CO., LIMITED Πιστοποιήσεις
Κίνα N&S ELECTRONIC CO., LIMITED Πιστοποιήσεις
Αναθεωρήσεις πελατών
Έχουμε επιστρέψει σύνολο των άριστων μνημών, N&S είναι πολύ καλή οργάνωση. Πραγματικά ειδικός για τα LCD.

—— ANDY

Θα επιθυμούσαμε να εγκωμιάσουμε την υπηρεσία που λάβαμε από αυτήν την επιχείρηση που οργάνωσε faultlessly τη γραμμή προμήθειας επιτροπής LCD μας.

—— Μ. Χ. Θάτσερ

Εάν προγραμματίσω μια άλλη διαταγή επιτροπής LCD δεν θα διστάσω να σας έρθω σε επαφή με πάλι.

—— Alejandro

Είμαι Online Chat Now

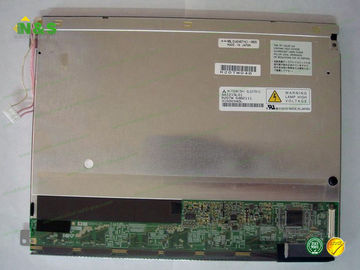

Normally White Mitsubishi AA121SL01 Industrial LCD Displays with 246×184.5 mm Active Area Frequency 60Hz

Normally White Mitsubishi AA121SL01 Industrial LCD Displays with 246×184.5 mm Active Area Frequency 60Hz
Normally White Mitsubishi AA121SL01 Industrial LCD Displays with 246×184.5 mm Active Area Frequency 60Hz

Μεγάλες Εικόνας :  Normally White Mitsubishi AA121SL01 Industrial LCD Displays with 246×184.5 mm Active Area Frequency 60Hz

Λεπτομέρειες:
Τόπος καταγωγής: Ιαπωνία
Μάρκα: Kyocera
Πιστοποίηση: ISO9001
Αριθμό μοντέλου: AA121SL01
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1
Συσκευασία λεπτομέρειες: Αντιστατική τσάντα, τσάντα φυσαλίδων, κιβώτιο αφρού και κιβώτιο χαρτοκιβωτίων.
Χρόνος παράδοσης: 2-3 εργάσιμες ημέρες μετά από την επιβεβαίωση πληρωμής
Όροι πληρωμής: T/T, Western Union, Paypal
Δυνατότητα προσφοράς: 100 PC/ΗΜΈΡΑ

Normally White Mitsubishi AA121SL01 Industrial LCD Displays with 246×184.5 mm Active Area Frequency 60Hz

περιγραφή
Μέγεθος πίνακα: 12.1 ίντσα Ψήφισμα: 800×600
Ενεργός περιοχή: 246×184.5 χιλ. περίληψη: 280×210×12.5 χιλ.
συχνότητας: 60 hz
Υψηλό φως:

industrial lcd screen

,

industrial lcd panel

Normally White Mitsubishi AA121SL01 Industrial LCD Displays with 246×184.5 mm Active Area Frequency 60Hz



AA121SL01 Basic Information

Panel Model AA121SL01
Panel Brand Mitsubishi
Descrition a-Si TFT-LCD ,12.1 inch, 800×600
Panel Type a-Si TFT-LCD
Model Alias T-51512D121J-FW-A-AB
Operating Temperature -20 ~ 70 °C
Storage Temperature -20 ~ 70 °C



AA121SL01 Mechanical Features

Dot Resolution 800(RGB)×600 (SVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 82 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.1025×0.3075 mm (H×V)
Pixel Pitch 0.3075×0.3075 mm (H×V)
Weight 740g (Typ.)
Surface Antiglare, Hard coating (3H)
Active Area 246×184.5 mm (H×V)
Bezel Area 249.0×187.5 mm (H×V)
Outline Dimension 280×210 mm (H×V)
Outline Depth 12.0 (Typ.) mm
Holes & Brackets Face mounting holes (4-Φ3.5) on left bezel, right slugs
Landscape or Portrait Landscape type
Touch Panel Without



AA121SL01 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 20/30 (Typ.)(Tr/Td)
Viewing Angle 65/65/45/75 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.332; Wy:0.367
White Variation 1.30 (Max.)(5 points)
Sunlight Readable N



Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!



The reasons you choose us

1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.



Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
HV320WHB-N06 BOE 31.5" 1366×768
LH500WX4-SH01 LG Display 5.0" 720×1280
LC470DUT-SEF2 LG Display 47" 1920×1080
P080DCE-3F0 Innolux 8.0" 800×1280
BP070WS7-500 BOE 7.0" 1024×600
PJ055IC-01A Innolux 5.5" 1080×1920
TV070WVE-N10 BOE 7.0" 800×480
LSC550HJ11 Samsung 55" 1920×1080
PP050IA-03B Innolux 5.0" 1080×1920
